[2025.03.16] 1.5kW 이동형 수소연료전지 (1.5 kW Portable Fuel Cell System)

Based on its own air-cooled fuel cell stack technology, Terrrix has developed a mobile hydrogen fuel cell product with a rated output of 1.5 kW.

The product has been certified in Europe after a certification period of nearly two years.



Summary

- 1.5 kW Portable Fuel Cell System (based on rated power)

- Stacks composed of titanium separators in closed-cathode type (Stack warranty life 2500 hours)

- Obtain European certification including performance, durability, and electromagnetic waves

- Full weight 55 kg, Size (W x D x H, mm) 830 x 400 x 400 mm



1. Overview

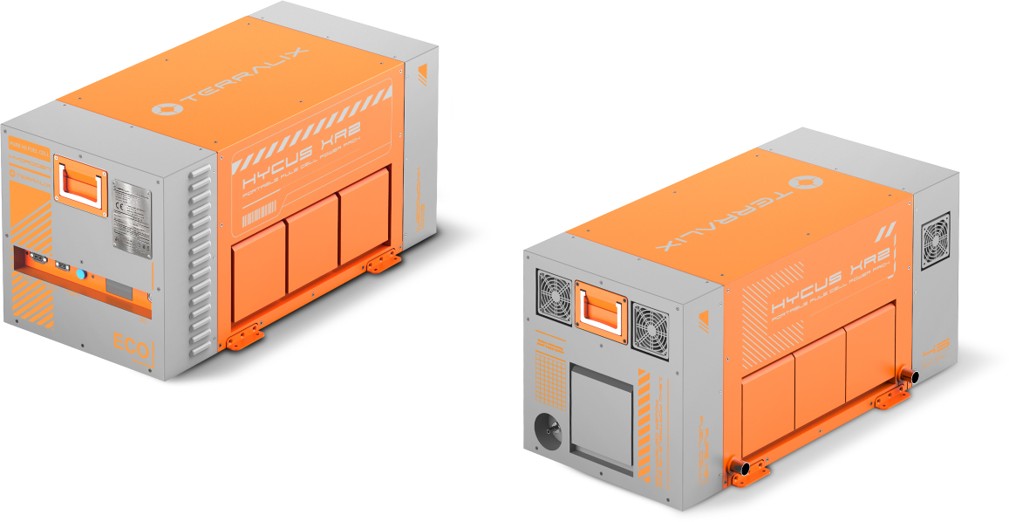

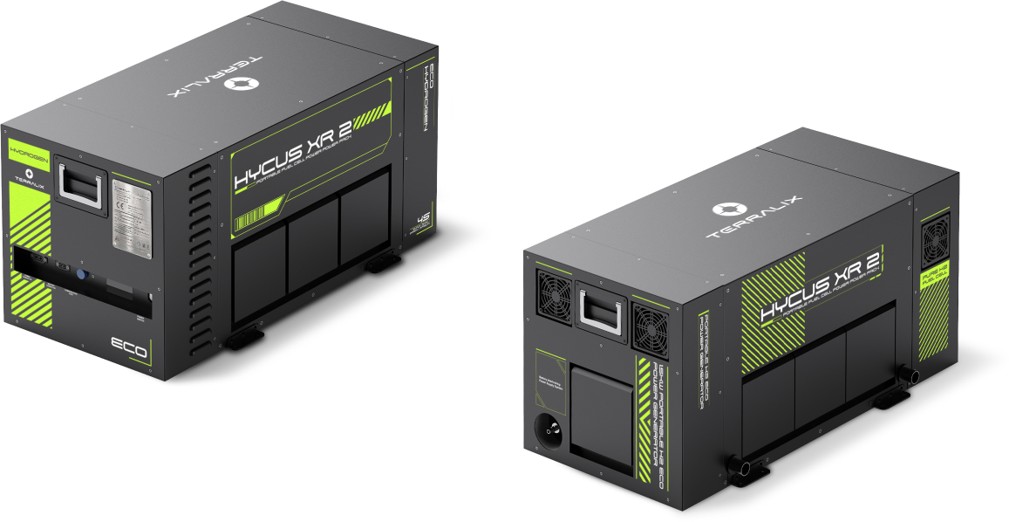

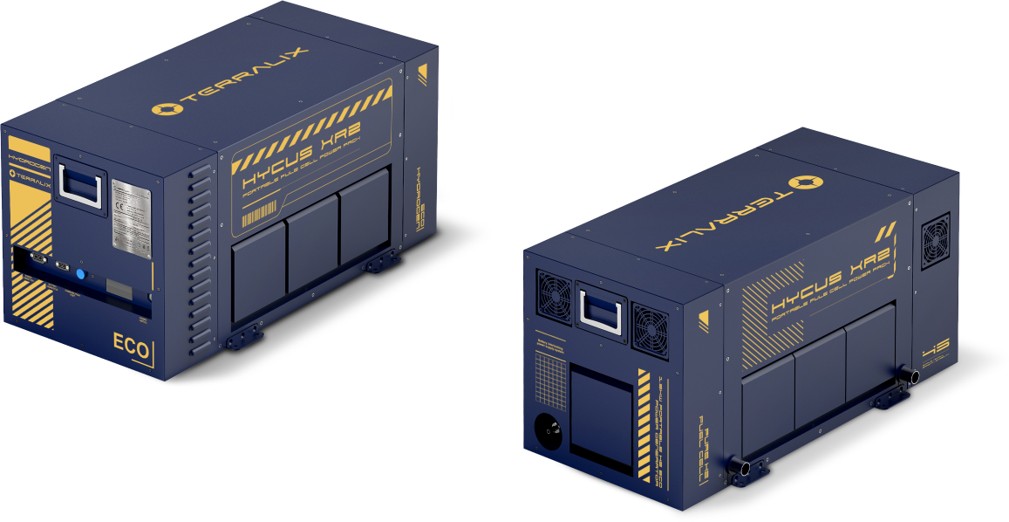

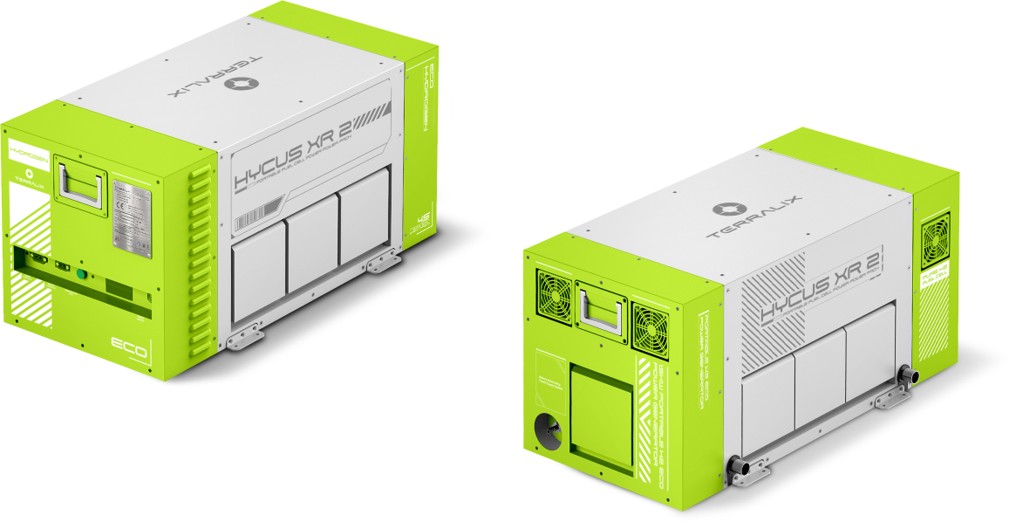

- HYCUS XR2 model consists of closed-cathode type air-cooled fuel cells

- Stable production of rated power 1.5 kW

- Closed-cathode type : Separation of channel for supply of reducing reaction air gas and cooling air gas

- Stack warranty life 2500 hours

- Special channel design technology enables moisture-free operation



2. CE certificated product

- European certification: Completion of product certification including performance, durability, electromagnetic waves

- Portable fuel cell power system safety standard : IEC 62282-5-100

- EMC(Electromagnetic Compatibility) standard : IEC 61000-6-4:2019, IEC 61000-6-2:2019

- Shock and Vibration Standard : IEC 62282-5-100 ANNEX B (UL2267, “Fuel cell power system for use in industrial trucks”)



3. Durability

- Closed-cathode type air-cooled fuel cell stack cumulative operation of more than 1,000 hours and on/off cycles of more than hundreds of times

- The theoretical life time required to reduce by 10% compared to the initial performance is achieved in 11,000 hours

- System level cumulative operation of more than 720 hours and on/off cycles of more than 100 times

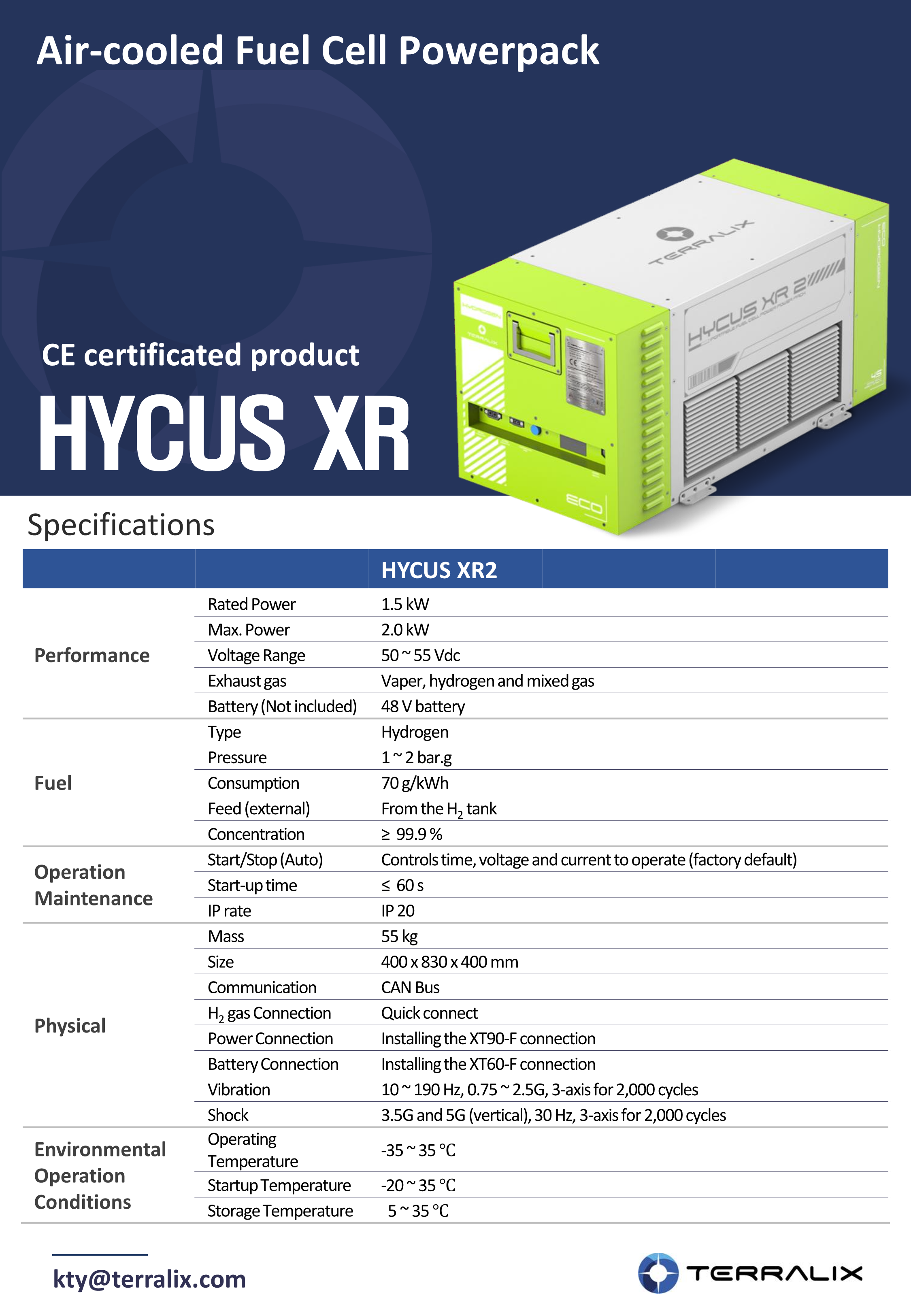

4. Product Description



- Performance

- Rated power : 1.5 kW (Max. Power 2.0 kW)

- Voltage range : 50 ~ 55 VDC



- Size / Configuration

         - Full weight 55 kg, Size (W x D x H, mm) 830 x 400 x 400 mm

        - The design of the case may change as requested by the user and the overall weight and dimensions may change accordingly



- External Battery

        - A basic connected battery is required, and a separate battery is not included in the product.

       - Battery can be changed through prior consultation



- Fuel

       - Pure hydrogen (>99.9%)

       - Pressure : 1 ~ 2 bar.g

       - Consumption : 70 g/kWh
