Summary

    - Modification of air-cooled hydrogen fuel cell power pack for aircraft application

    - Configuration of 10 air-cooled stack modules in a radial structure

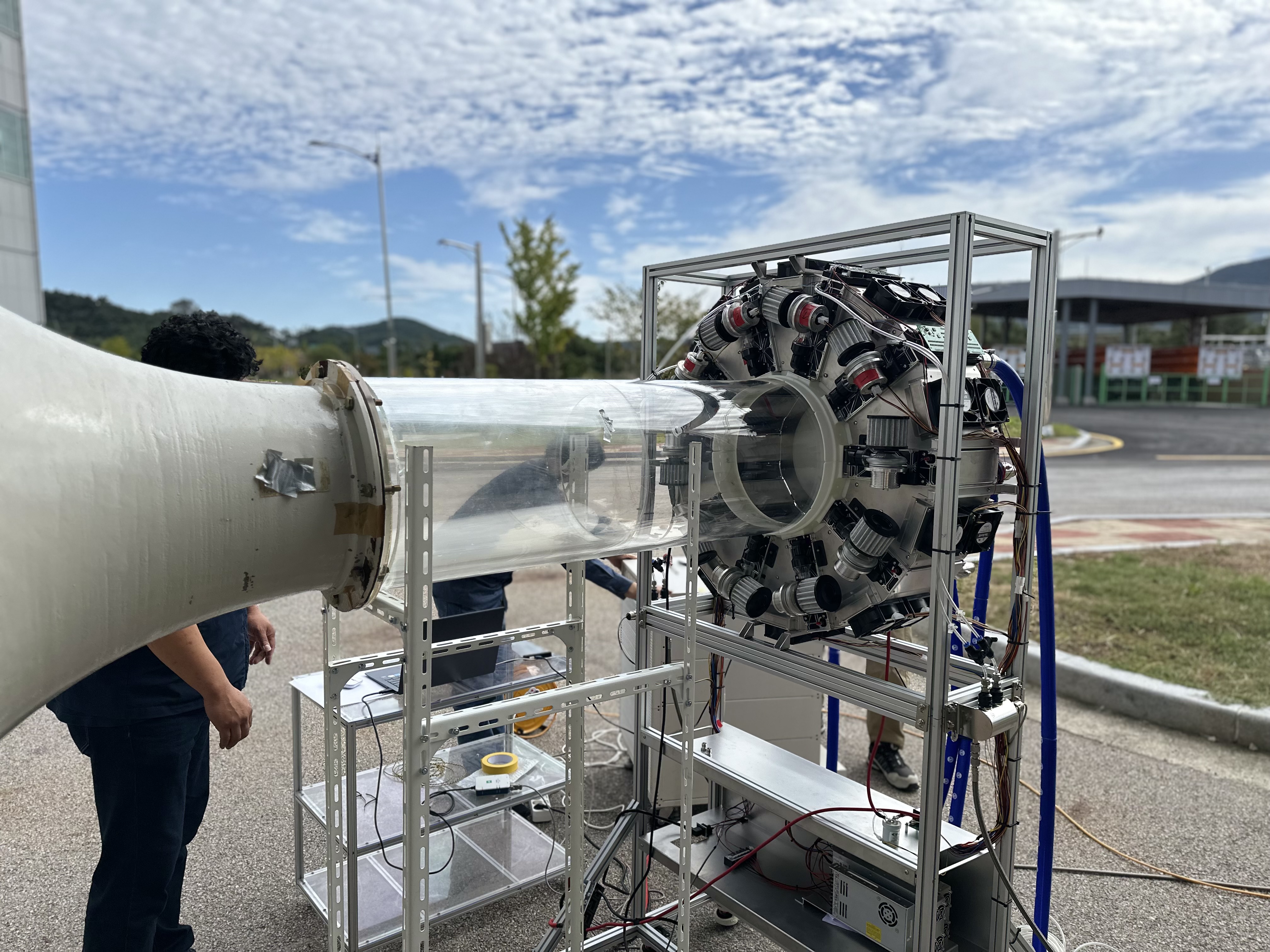

    - Cooling duct design and cylindrical outer structure suitable for wind tunnel testing environment

    - X-LOOP consists of ten 2 kW rated stacks connected together



X-LOOP Specifications

    - System Dimensions

          - Module Mounting Section (W x H x D): within 1,000 x 1,000 x 400 mm

          - Electrical Equipment Mounting Section (W x H x D): within 1,000 x 1,000 x 400 mm

          - Central Opening Diameter: 350 ~ 400 mm



Expectation

    - By connecting TerraLIX's air-cooled fuel cells in series, we have produced X-LOOP that can produce 20 kW output specialized in the aviation field.

    - Ten stacks with a 2 kW rated output are connected in series, and the air supplied to the central part can manage the heat of the entire stack.

    - X-LOOP is a concept that can connect more than 10 more stacks to extend the output per unit up to 50 kW.

    - If 10 of these 50 kW fuel cells can be connected for thermal management, it is expected that the output can be drawn up to 500 kW based on the unit module.





Air-Cooled Hydrogen Fuel Cell Stack Specifications



Item	Specification
Stack Output	2.0 kW (at reference current density of 0.6 A/cm²)
Reference Voltage	51.0 V (at reference current density of 0.6 A/cm²)
Voltage Range	49 ~ 75.6 V
Cell Structure	Closed-cathode type, capable of non-humidified operation
Reactant Gas	Hydrogen (>99.9%)
Supply Pressure	1 ± 0.2 bar (gauge)
Hydrogen Consumption Rate	70 g/kWh
Operating Temperature	-35 ~ 35 ℃
Operating Humidity	0 ~ 90 % RH
Cooling Method	Air-cooled
